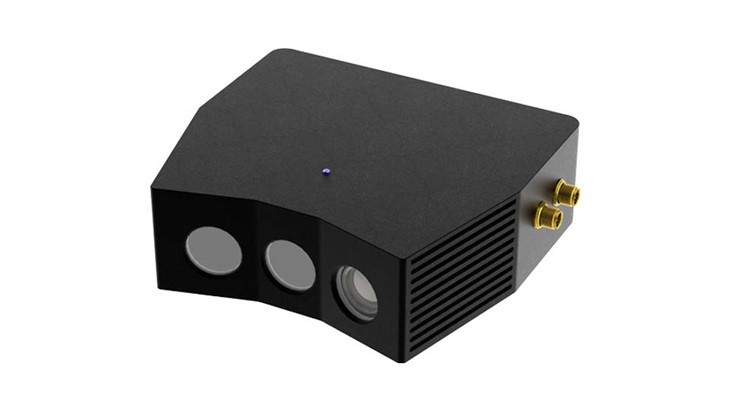

DS 3D Camera

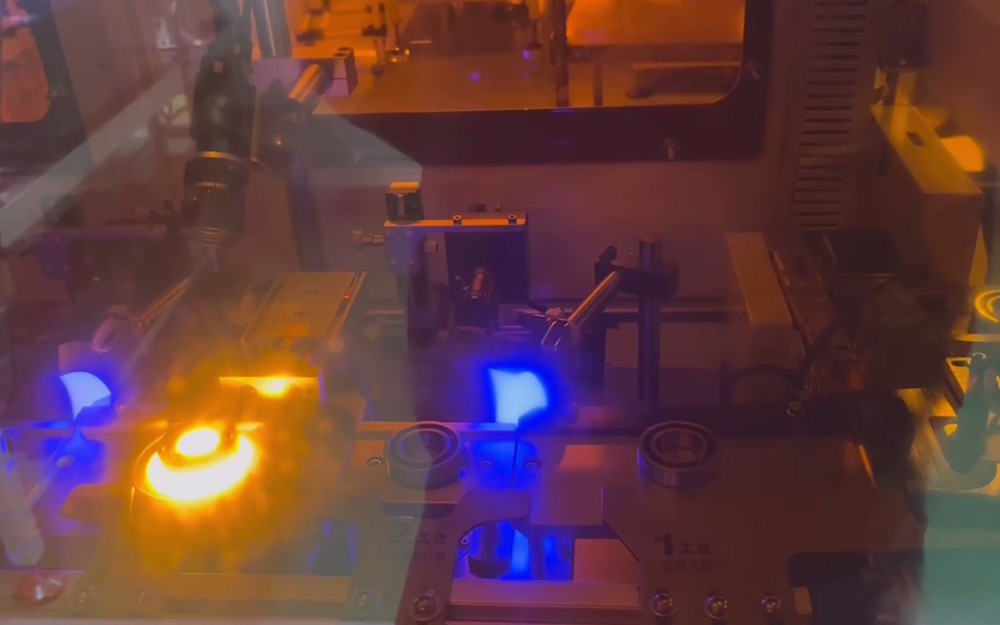

It is suitable for bearing inspection and ceramic substrate inspection, providing crucial three-dimensional data support and serving as a core technology component for achieving high-precision, automated quality control.

Products parameter

High-brightness blue LED structured light source

Supports 2D HDR and 3D HDR synthesis

Employs a self-developed high-precision imaging algorithm with a repeatability better than 5m

Based on embedded computing, all calculations are completed by the camera's own hardware

Suitable for high-precision inspection and measurement of micro-parts

Technical parameters

Item	Details
Typical Applications	3D defect detection, flatness inspection, scratch & particle detection
Field of View	55×40mm - 120×80mm
Working Distance	100mm - 200mm
Scanning Rate	3FPS
Imaging Method	DLP structured light (multi-frequency phase shift, Gray code, line shift)
Resolution	2.3MP, 3MP, 5MP
Average Error	0.15%
Light Source Type	BLUE LED
Weight	2.6Kg
External Dimensions	175×202×65mm
Power Interface	M12 aviation, 36V DC 4.4A
Network Interface	M12X aviation, 2.5G
Secondary Development	Based on HTTP
Calculation Method	Embedded computing
Protection Class	IP65
Certifications	CE, FCC

Frequently Asked Questions

Q1:Does the camera provide an easy-to-integrate software development kit (SDK) and detailed API documentation?

A1：Available.

Q2:Which mainstream programming languages and robot control systems are supported?

A2：C++, HTTP connection

Q3:Are spare parts available for core components (such as dedicated light sources and high-precision lenses)?

A3：No, it's not considered a consumable or easily damaged part.

Q4:Will there be any additional costs for major feature updates or version upgrades?

A4：No.It's free
