Products Features

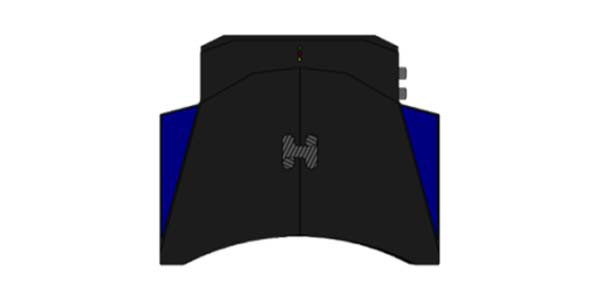

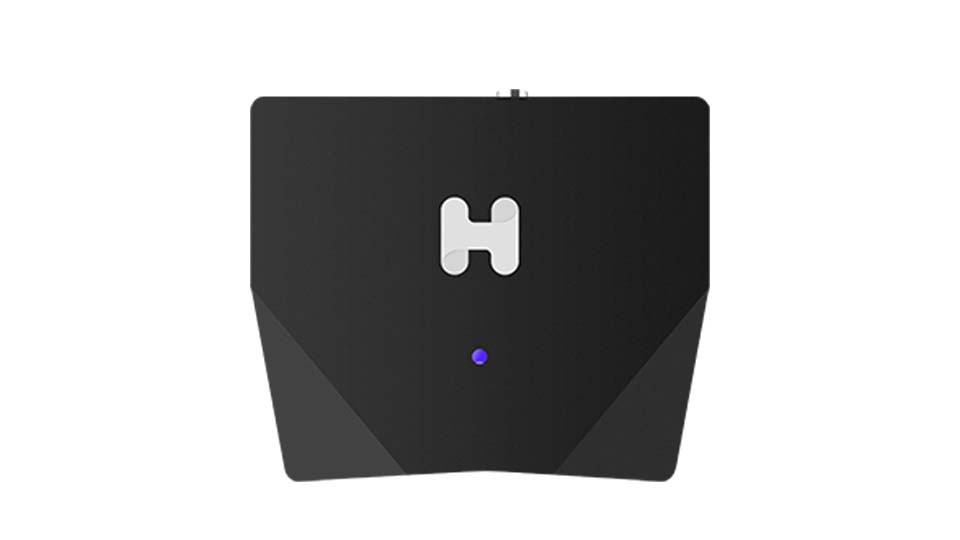

TrueD2305Ms is a monocular structured light 3D camera specifically developed for visual positioning and guidance, also suitable for 3D error-proofing and deformation detection.

High-brightness R/G/B/W structured light source

HDR wide dynamic high-speed 3D imaging

Preloaded with various coding and decoding algorithms

Low-precision defect detection with accuracy better than 0.1mm

Technical parameters

Parameter	Details
Typical Application	Robot vision positioning guidance; 3D vision detection and measurement
Minimum Field of View	318×215mm; 493×336mm; 600×400mm
Maximum Field of View	655×451mm; 951×653mm; 1200×800mm
Z-axis Accuracy	80μm; 120μm; 300μm
Depth of Field	500mm; 650mm; 800mm
Working Distance	417–917mm; 567–1217mm; 800–1600mm
Scanning Frame Rate	≤4.0Hz
Camera Resolution	1920×1200
Weight	1.2Kg
Physical Dimensions	160×135×62mm
Imaging Method	FNE/GPS/MUF
Light Source Type	RGB LED
Data Interface	USB3.0 (3m/5m/10m optional)
Power Input	12VDC, 10A max
SDK	C/C++/HTTP
Operating Temperature	0°C–50°C
Storage Temperature	-10°C–60°C
otection Class	IP65
Anti-Vibration Performance	Frequency 10–50Hz, 1.5mm double amplitude in X/Y/Z directions, lasting 1 hour
Certification	CE, FCC

Frequently Asked Questions

Q1:Is the camera installation and calibration process complex? Are specialized tools or personnel required?

A1：Calibrated before leaving the factory

Q2:Does the camera have IP protection rating certification?

A2：Structured light IP65, TOF IP67

Q3:Do you provide on-site technical support during equipment installation and commissioning? Will you provide systematic training for our operators and maintenance personnel? What does the training include?

A3：Yes, we will provide an operating manual for the equipment, including maintenance precautions, and will provide written guidance as well as on-site guidance.

Q4:How long does your delivery take?

A4：We provide customized solutions, and delivery typically takes about 50 days.
