Products parameter

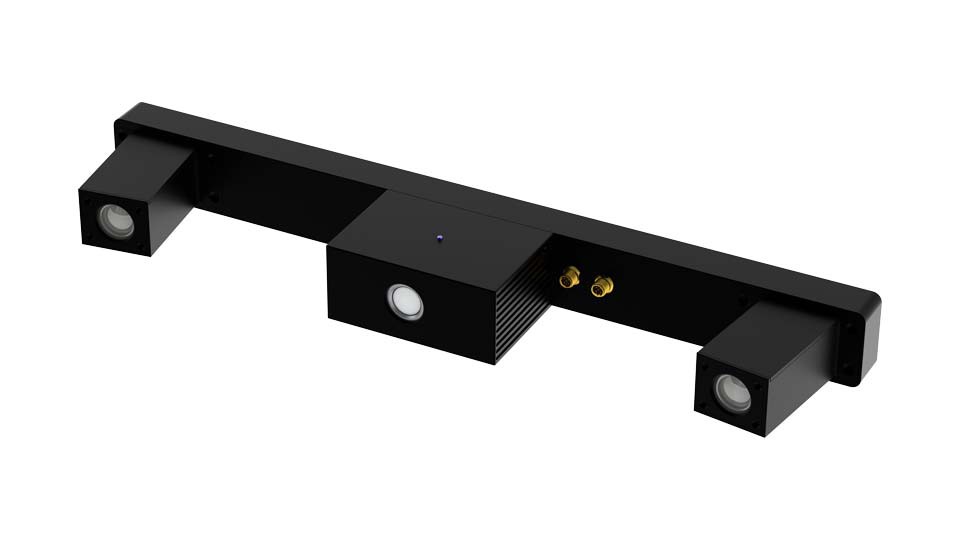

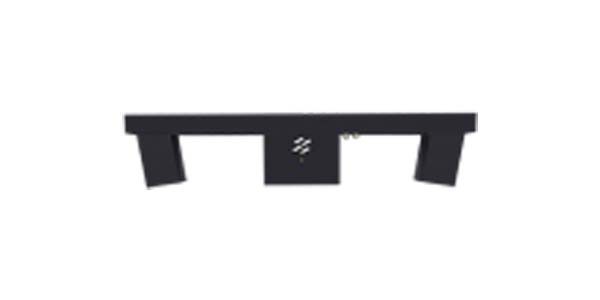

Embedded binocular structured light technology solution

High-brightness R/G/B/W structured light source

Multiple preset encoding methods, freely switchable

Supports 2D HDR and 3D HDR compositing
High-performance, cost-effective 3D camera suitable for Bin-Picking application

Technical parameters

Item	Details
Typical Applications	Positioning & guiding robot loading/unloading, depalletizing, sorting
Field of View	400×300mm - 2500×2000mm
Working Distance	600mm - 2500mm
Scanning Rate	3FPS
Imaging Method	DLP structured light (multi-frequency phase shift, Gray code, line shift)
Resolution	2.3MP, 3MP, 5MP
Average Error	0.15%
Light Source Type	RGB LED
Weight	3.6Kg
External Dimensions	136×650×65mm
Power Interface	M12 aviation, 36V DC 4.44A
Network Interface	M12X aviation, 2.5G
Secondary Development	Based on HTTP
Calculation Method	Embedded computing
Protection Class	IP65
Certifications	CE, FCC

Frequently Asked Questions

Q1:For Time-of-Flight (TOF) cameras, how can we avoid mutual interference and accuracy loss when multiple cameras are working simultaneously or in complex lighting conditions?

Generally, try to avoid triggering them simultaneously.

Q2:What special vibration-resistant or reinforced designs are needed for the camera?

Customization is available for specific needs.

Q3:Do you provide on-site technical support during equipment installation and commissioning? Will you provide systematic training for our operators and maintenance personnel? What does the training include?

Yes, we will provide an operating manual for the equipment, including maintenance precautions, and will provide written guidance as well as on-site guidance.

Q4:What is the warranty period for your products?

We offer a one-year warranty after delivery.

Frequently Asked Questions

Q1:For Time-of-Flight (TOF) cameras, how can we avoid mutual interference and accuracy loss when multiple cameras are working simultaneously or in complex lighting conditions?

A1：Generally, try to avoid triggering them simultaneously.

Q2:What special vibration-resistant or reinforced designs are needed for the camera?

A2：Customization is available for specific needs.

A3：Yes, we will provide an operating manual for the equipment, including maintenance precautions, and will provide written guidance as well as on-site guidance.

Q4:What is the warranty period for your products?

A4：We offer a one-year warranty after delivery.
