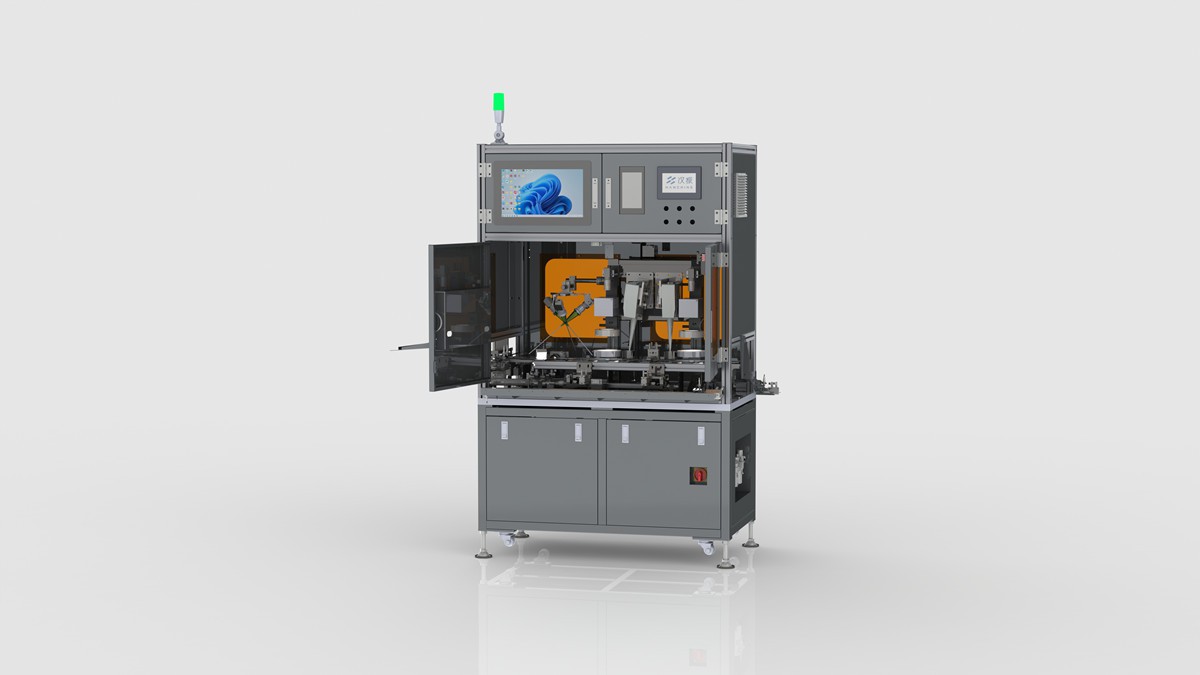

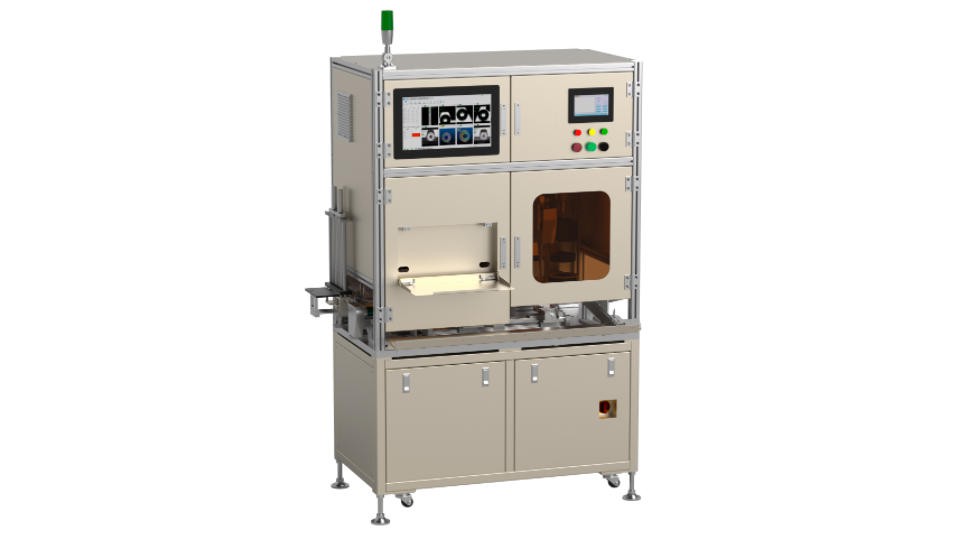

Model 1530 Bearing Inspection

Model HZ-VI-BB1530
—Model HZ-VI-BB0515 —Integrating 2D/3D vision technology with self-developed industrial 3D cameras and inspection algorithms, achieving 360° all‑round detection of bearing surface defects (chamfers, end faces, outer diameter surfaces, covers, inner holes). Compatible with rubber seals, metal shields, and open‑type bearings, size range 15‑30mm, speed 2‑3.5s/pcs, 7x24h stable operation.

Products parameter

Inspectable Dimensions

OD: φ15–30 mm Thickness: ≤30 mm

Inspection Speed: 2-3.5s/pcs

Inspection Items

2D Defects

Floating covers, bursting, curled edges, cover-ring gaps, inner/outer ring defects, chamfer issues (existence/size), rust, black skin, mixed covers, missing characters, surface cracks, scratches.

3D Defects

Dust cover surface dents (iron/plastic) (<0.03 mm accuracy), floating height.

Intelligent 3D Visual Inspection Solution

Flexible software platform: Highly configurable, adapts to multiple product types.

High-Precision 3D Vision

Captures micro‑deformation/dents in bearings, overcoming slow‑change detection limits.

Detectable defects

Irregular outer ring chamfer

Pits

Black spots

Abnormal internal chamfer

Black spots in the inner ring

Black spots

Outer ring wasteOut

Inner ring waste

Product operation video

Frequently Asked Questions

Q1:Can you provide a complete turnkey production line project, including the integration of the entire system such as conveyors, cleaning, inspection, and sorting?

A1：Yes, we do not just provide a single piece of equipment; we offer customized solutions. We can supply a complete system integrating cleaning machines, inspection machines, and sorting mechanisms.

Q2:Does the system software have functions such as defect classification, data traceability, and trend analysis? Can it generate visualized quality reports?

A2：Yes.

Q3:How automated is the changeover and commissioning process for bearings of different sizes and types?

A3：Manual replacement takes about 10 minutes

Q4:Can the equipment's testing speed be synchronized with the automated production line to achieve online full inspection instead of spot checks?

A4：The fastest testing time is 2 seconds, with a speed of 30 pieces per minute.
