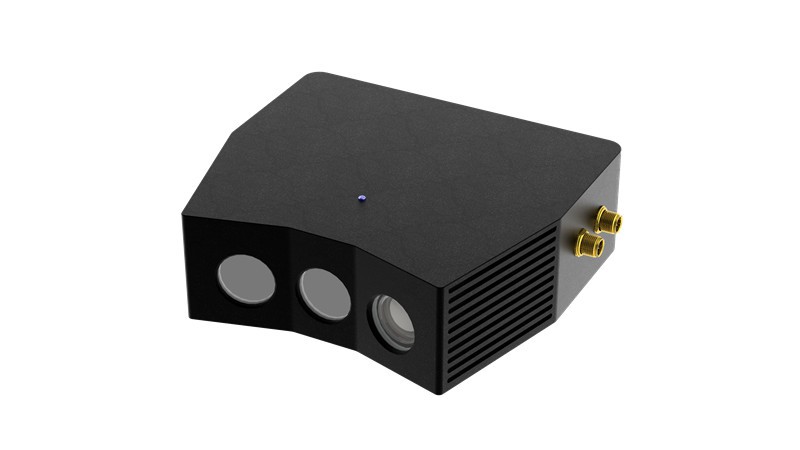

Products parameter
Typical Applications：
Robot vision positioning; 3D visual inspection and measurement
Field of View：318×215mm → 1200×800mm
Working Distance：417mm → 1600mm
Scanning Rate：≤40Hz
Imaging Method：FNE/GP S/MUF
Resolution：2.3MP, 3MP, 5MP
Average Error：0.15%
Light Source Type：RGB LED
Based on high-power single/multi-line laser, with strong resistance to ambient light interference.
Based on embedded computing, all calculations are completed by the camera's own hardware.
Working distance up to 20 meters.
Can be configured with a separate color camera to output high-resolution color images.
Suitable for scenarios such as visual positioning and guidance for loading/unloading, palletizing/depalletizing, etc., with a large field of view and depth of field.

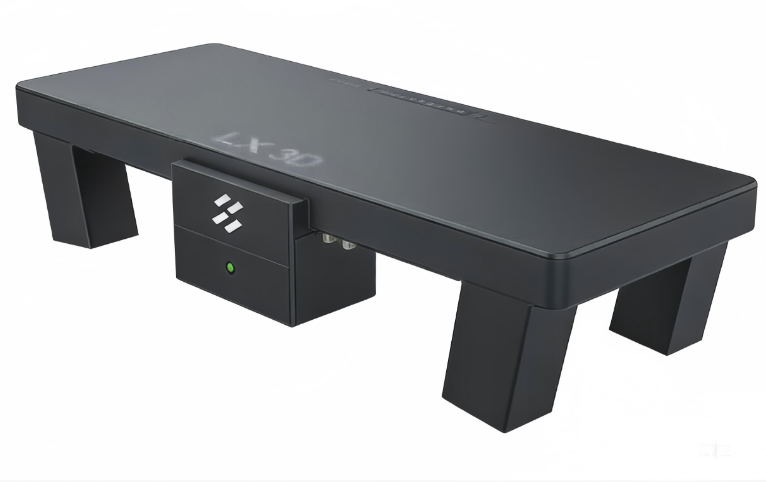

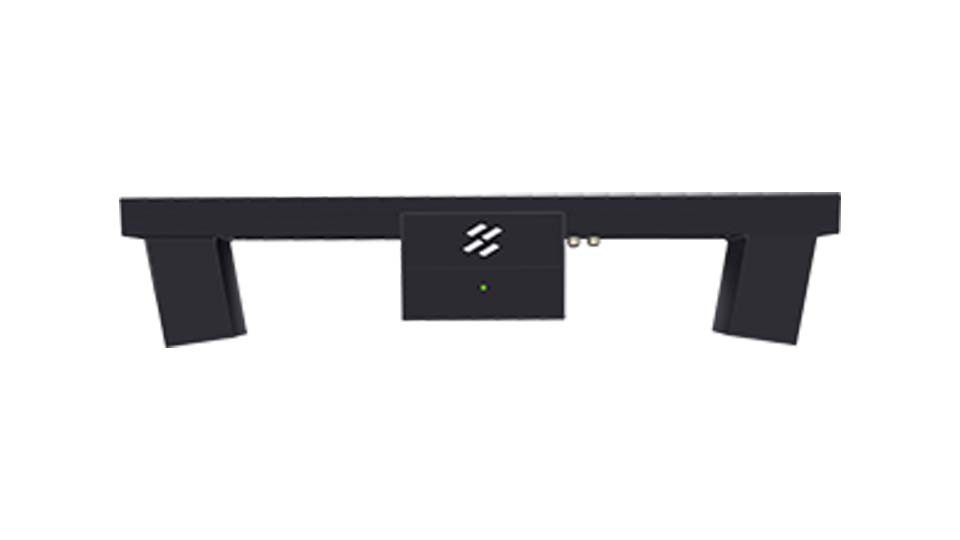

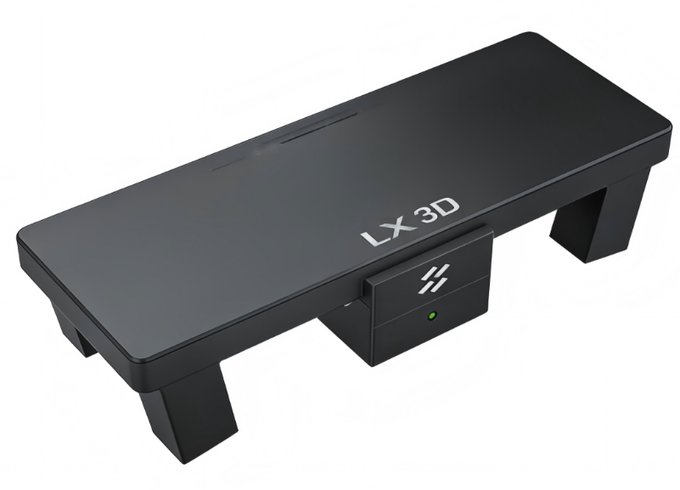

Technical parameters
|
Item |
Details |
|
Typical Applications |
Positioning & guiding robot loading/unloading, depalletizing, sorting |
|
Field of View |
1m×0.8m - 10m×8m |
|
Working Distance |
1.7m - 20m |
|
Scanning Rate |
1FPS |
|
Imaging Method |
Single/multi-line laser (line shift) |
|
Resolution |
1.3MP, 2.3MP |
|
Average Error |
0.3% |
|
Light Source Type |
638nm laser |
|
Weight |
4.0Kg |
|
External Dimensions |
136×650×146mm |
|
Power Interface |
M12 aviation, 36V DC 4.44A |
|
Network Interface |
M12X aviation, 2.5G |
|
Secondary Development |
Based on HTTP |
|
Calculation Method |
Embedded computing |
|
Protection Class |
IP65 |
|
Certifications |
CE, FCC |

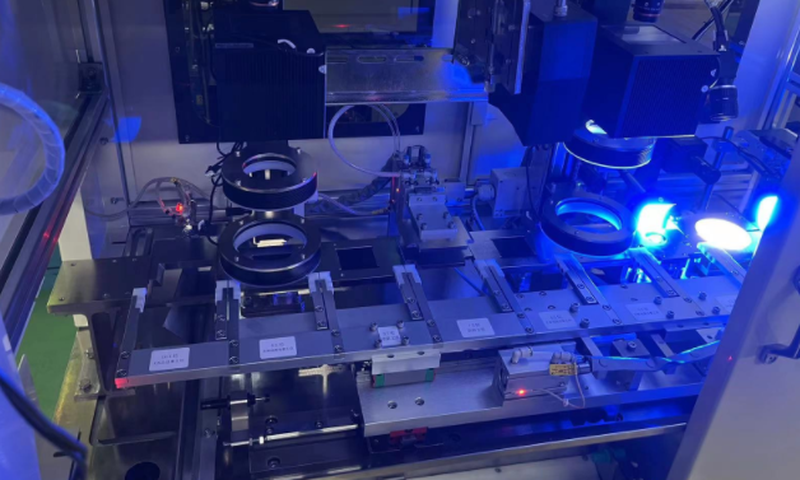

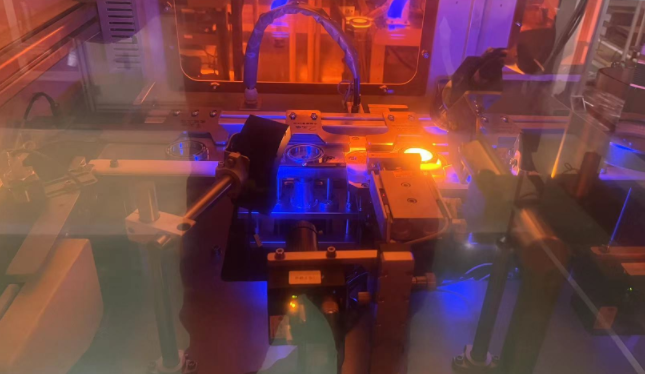

Application scenarios
By actively projecting laser speckle patterns to acquire the three-dimensional information of objects, this technology is suitable for applications such as visual positioning and guidance for loading and unloading, and palletizing/depalletizing. It maintains stable imaging even in complex lighting environments and when facing reflective surfaces, ensuring accurate positioning and contributing to efficient and reliable industrial automation.
Frequently Asked Questions
Q1:Is the camera suitable for long-term stable operation in a compact electrical cabinet?
It is recommended that the electrical cabinet have a heat dissipation design.
Q2:What special vibration-resistant or reinforced designs are needed for the camera?
Customization is available for specific needs.
Q3:Are you a trading company or a manufacturer?
We are a manufacturer.
Q4:What is the warranty period for your products?
We offer a one-year warranty after delivery.
