Ceramic Substrate 3D Warpage Measuring

Ceramic Substrate 3D Warpage Measuring

Ceramic Substrate 3D Warpage Measuring
Ultra-high precision linear motor + high-precision 3D scanning acquires ceramic substrate surface and 3D point cloud data, with parallel computing and processing speed up to 40 million points/sec, repeatability of ±0.005 mm.
Send Inquiry







Products parameter





Warpage Classification​

Efficiency: ≥100 pcs/min, suitable for inline/standalone operation.

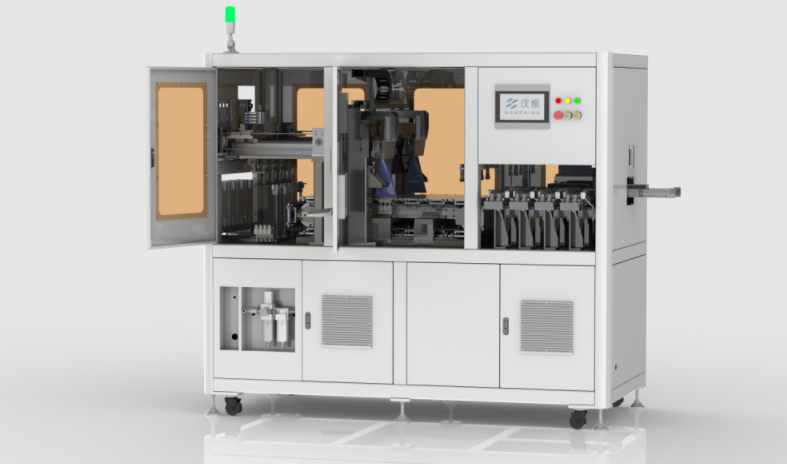

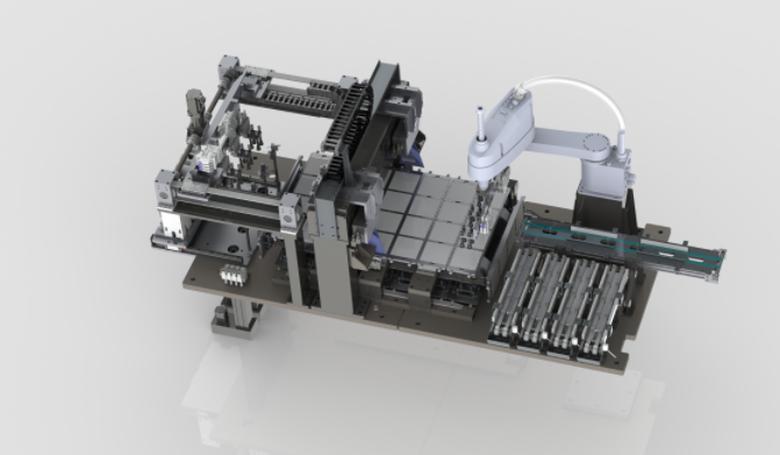

Hardware Configuration & Precision
Combines a line laser camera with an ultra-high-precision linear motor, achieving a repeatability of 0.01mm.

product-671-391

product-787-464

High-Efficiency Parallel Processing

Enables 5-piece parallel​ inspection via a transmission system, with a speed of up to 100 pcs/minute.

Full-Process Quality Control​

Supports inline inspection, sorting, and recording, achieving high-precision and high-efficiency 100% inspection for flatness.










OK Ｇｒｏｕｐ







product-219-224

0.103125

product-204-204
0.0888814
product-212-211

0.075594

product-214-215
0.095539
product-225-224

0.103125

product-201-200

0.0888814

product-198-198

0.075594

product-204-204

0.095539







NG Ｇｒｏｕｐ







product-217-216

0.221756

product-208-209
0.443553
product-234-236

0.470896

product-221-220
0.335075
product-204-204

0.221756

product-204-205

0.443553

product-236-236

0.470896

product-210-211

0.335075















Product operation video
















Frequently Asked Questions



product-732-457


Q1:What principle does the sorting machine operate on (e.g., air blowing, lever)?

 A1：Suction.

Q2:Can the equipment software generate detailed warpage distribution maps and quality statistical analysis charts?

 A2：Yes

Q3:What is the repeatability of the equipment when measuring warpage?

A3：0.01mm

Q4:What are the accuracy and speed of the sorting mechanism (such as an air nozzle or robotic arm)?

A4：0.1mm
