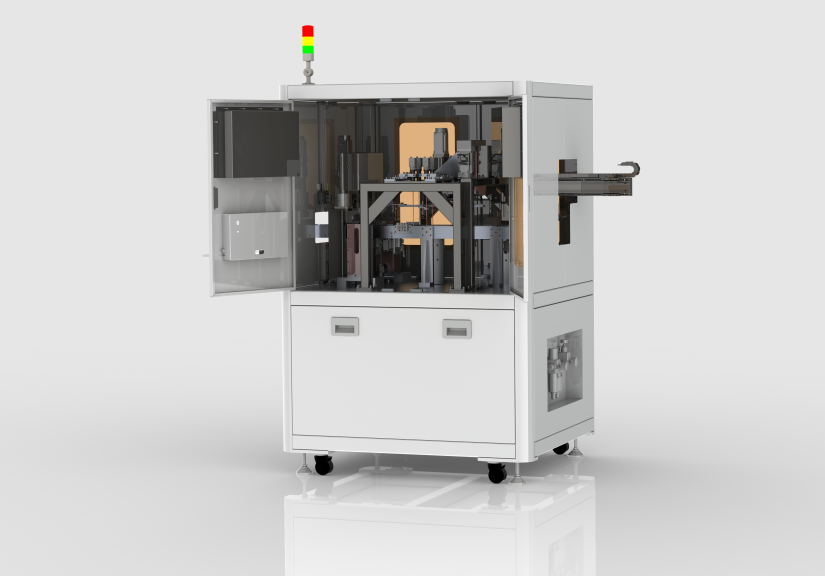

Products parameter

Machine Dimensions

680 mm (L) × 790 mm (W) × 1550 mm (H)

Rate ≥60 pcs/minute

Intelligent Vision & Packaging Solution

Uses a multi-camera high-precision vision system (ensuring calibration consistency) combined with a 3D packaging machine.

Full-process Automated Operation

Achieves fully automated sorting, counting, boxing, and coding, supports data traceability, and completely replaces manual operation.

Core Value & Results

Enables high-precision flexible grading, connects the full-process automation from front to back, and significantly improves production efficiency and quality control.

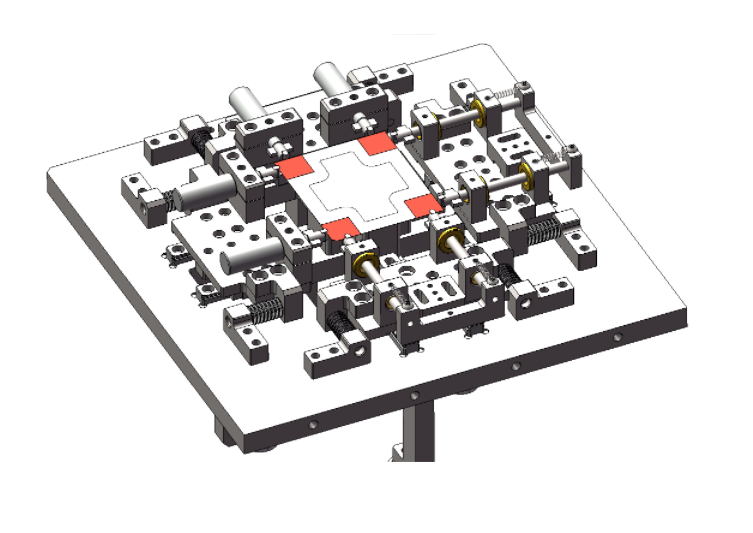

I. Loading Station：

Three material boxes operate alternately. A robotic arm's suction head picks up individual ceramic tiles from the material boxes and transports them to the measurement station.

The material box dimensions are: internal dimensions: 64mm × 74mm (effective product stacking height 250mm), with 10mm wide × 1mm thick acrylic sheets attached to the four corners.

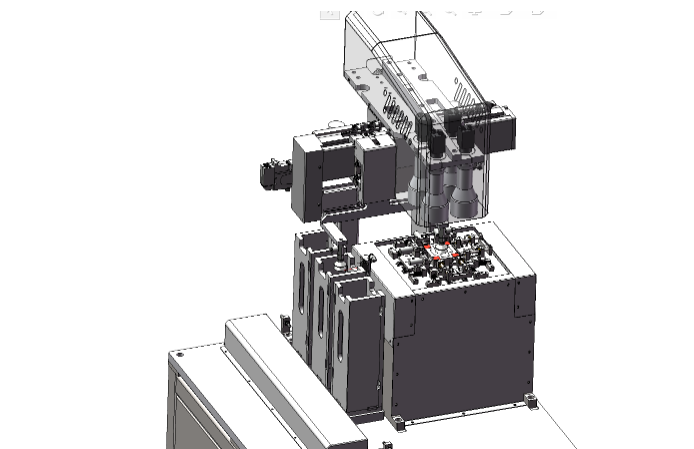

II. Measurement Station：

This section consists of two measurement systems.

Visual Measurement System：Composed of a 20-megapixel camera, dual telecentric lenses, and custom-designed parallel backlighting.

machine measures

The dimensions of ceramic substrates in the XY directions

Overall operating speed

≥30 pieces/min

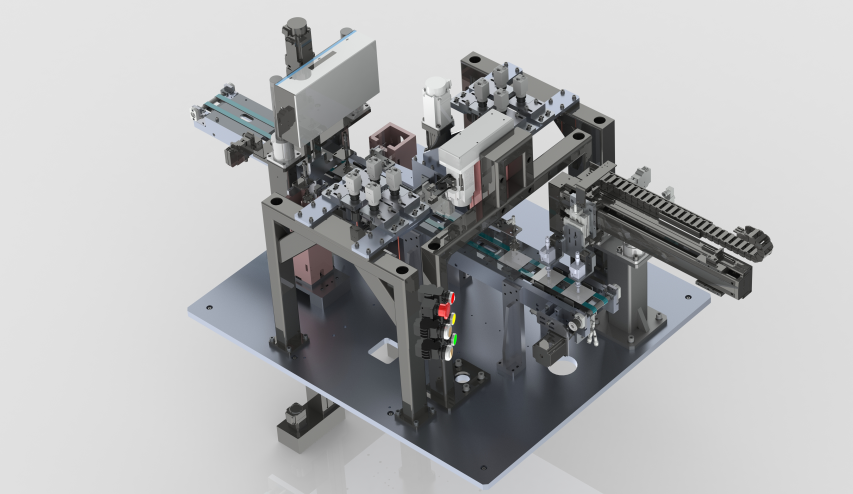

Overall structure

Loading station → Inspection station → Receiving station

interaction interface

Display and record detection results and status

Technical parameters

Item	Details
Structural Dimensions	Length: 680mm, Width: 790mm, Height: 1550mm
Motion Accuracy	0.1mm
Inspection Accuracy	0.005mm
Inner Dimensions of Material Box	64mm×74mmEffective stacking height of products: 250mm
Vision Measurement System	20MP camera with telecentric lens, 0.5x telecentric lens
Light Source	Custom parallel light sourceWhite: Half-life of 60000 hours
Structural Dimensions	Length: 680mm, Width: 790mm, Height: 1550mm
Motion Accuracy	0.1mm
Inspection Accuracy	0.005mm
Inner Dimensions of Material Box	64mm×74mmEffective stacking height of products: 250mm
Vision Measurement System	20MP camera with telecentric lens, 0.5x telecentric lens
Light Source	Custom parallel light sourceWhite: Half-life of 60000 hours

Product operation video

Frequently Asked Questions

Q1:Does the equipment's software support customized testing standard input?

A1：Yes, we can set the allowable warpage range and maximum size and quantity of defects for different product grades.

Q2:What are the accuracy and speed of the sorting mechanism (such as an air nozzle or robotic arm)?

A2：0.1mm

Q3:Can the equipment software generate detailed warpage distribution maps and quality statistical analysis charts?

A3：Yes

Q4:Do you provide on-site technical support during equipment installation and commissioning? Will you provide systematic training for our operators and maintenance personnel? What does the training include?

A4：Yes, we will provide an operating manual for the equipment, including maintenance precautions, and will provide written guidance as well as on-site guidance.

Hot Tags: ceramic substrate opitcal measuring and sorting, China ceramic substrate opitcal measuring and sorting manufacturers, suppliers, ceramic circuit board inspection, Ceramic Substrate Opitcal Measuring And Sorting, precision measuring equipment

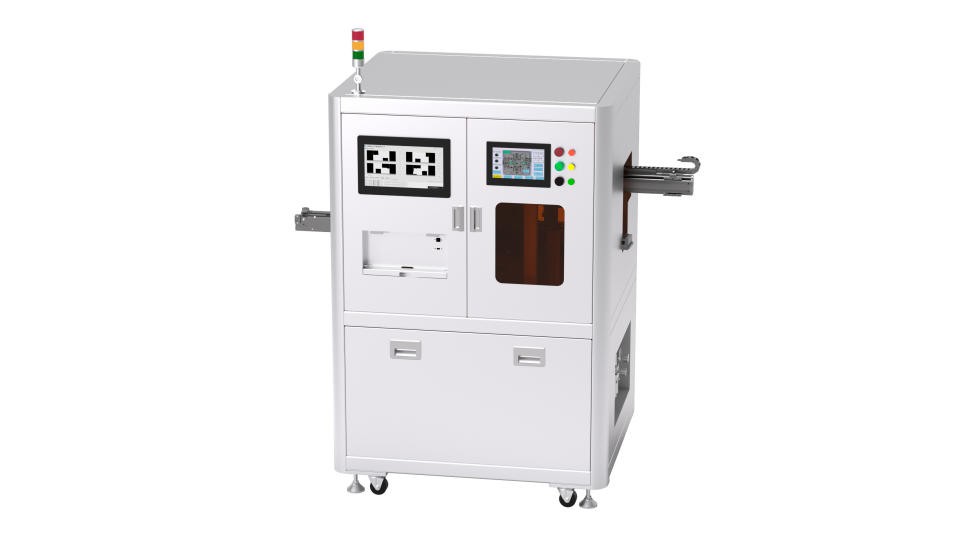

Ceramic Substrate Opitcal Measuring and Sorting
