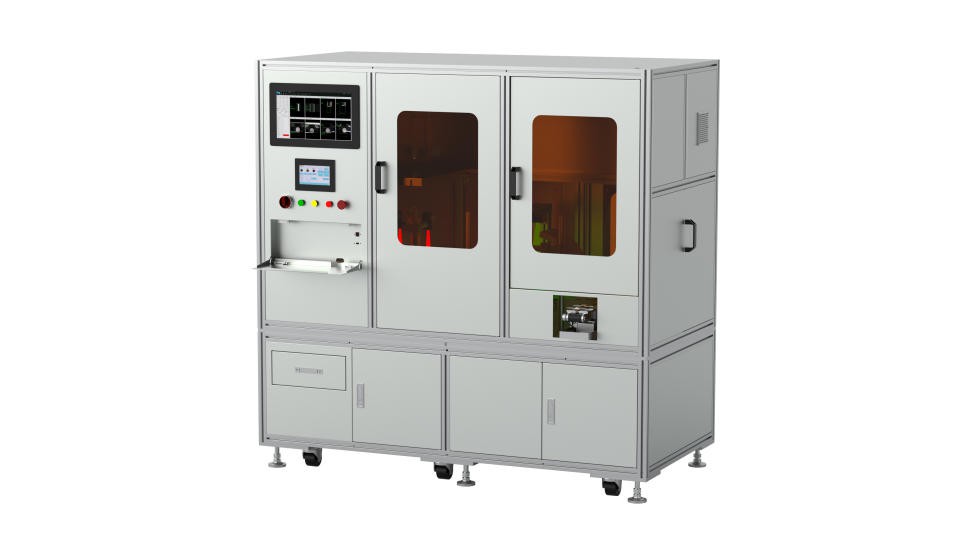

Model 0510 Bearing Roller Inspection

Model HZ-VI-CR0510
—Fully Automatic Optical Inspection Machine, 360° Non-Blind Detection for Roller Surface Defects (chamfers, end faces, outer diameter surfaces, recesses). Compatible with cylindrical, tapered, and self-aligning rollers (5-10mm). Speed: 12,000 units/hour, 7×24 hours stable operation.

Products parameter

Inspection Range And Speed

Workpiece: Φ5–10mm (OD), ≤30mm (length)

Stable speed: 220 pcs/min

Defect Recognition Items

Efficiently identifies: scrap, rust, black skin, pitting, dents, scratches, dent size, end face size, chamfer size, electric burn, spots, surface defects, cold heading defects, over-grinding, and excess material.

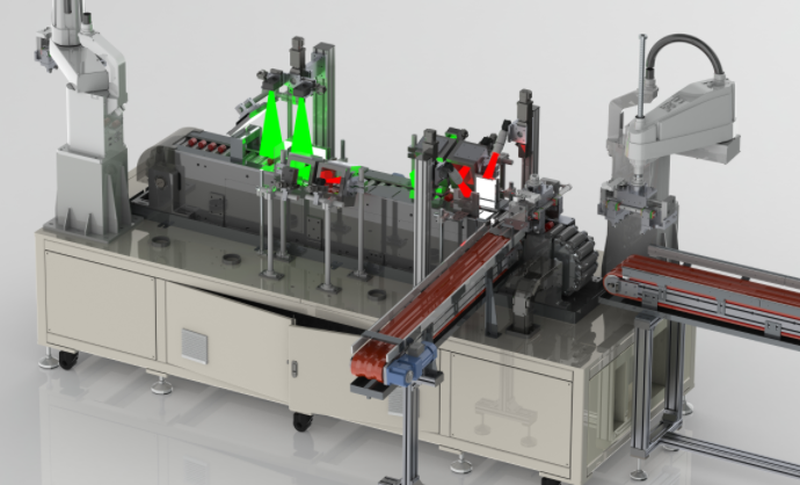

product-690-418

AI‑Powered Automated Optical Inspection Solution

AI Detection: 8 cameras (2 line‑scan), 160 pcs/min (0.01 mm defects)

Anti‑interference: AI noise filtering & vibration feeding

Efficiency: Data traceability, 5% yield improvement

Detectable defects

-Surface abrasion-1

Surface Abrasion

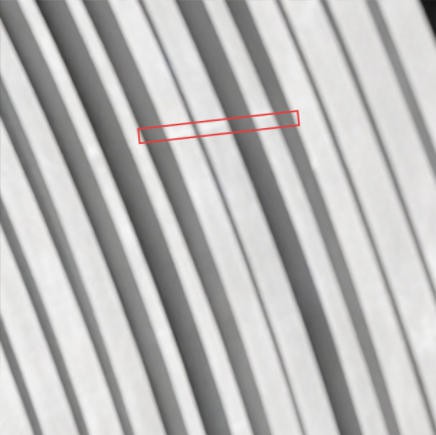

-Tooling marks-1

Tooling Marks

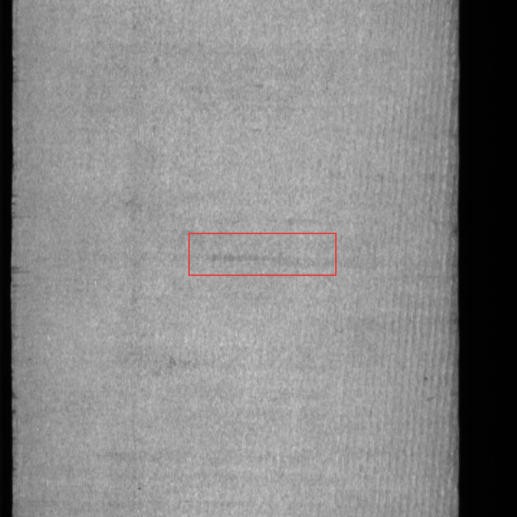

-Knurling pattern defect-1

Knurling Pattern Defect

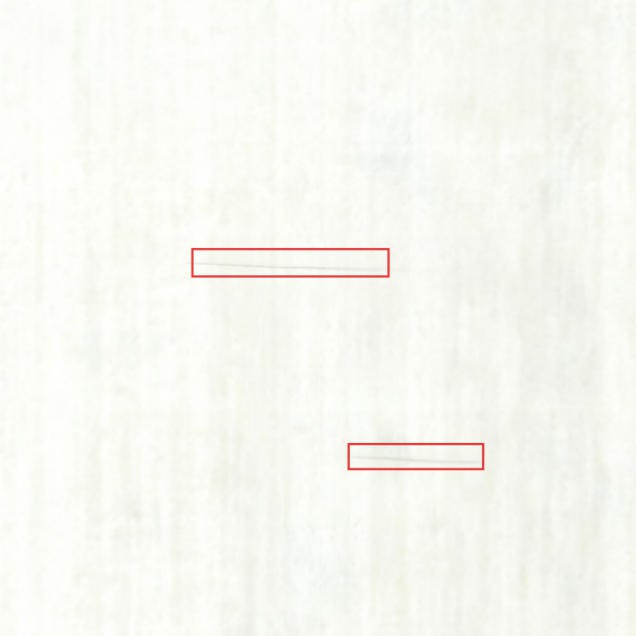

-Linear scratch-1

Linear Scratch

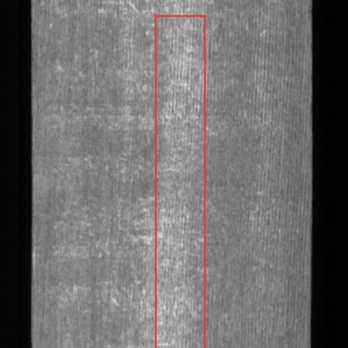

-Average gray value-1

Average Gray Value

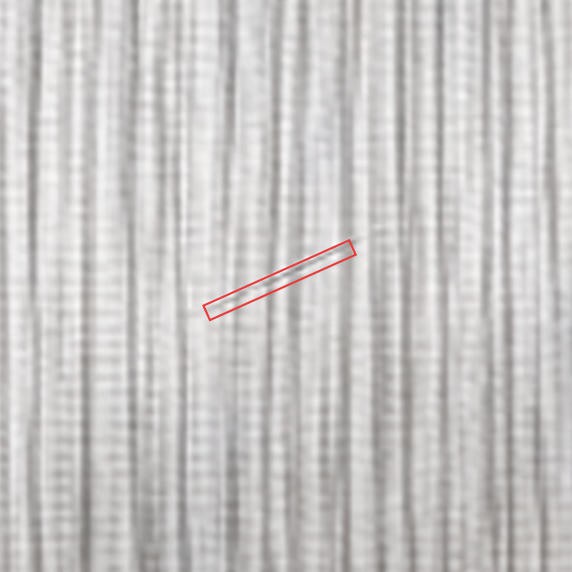

-Impact dent-1

Impact Dent

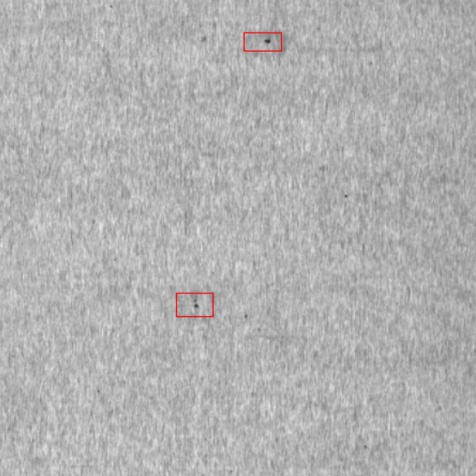

-Clustered dents-1

Clustered Dents

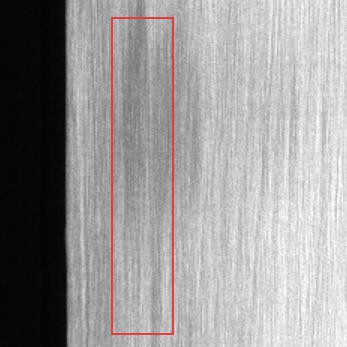

-Black spot on OD surface-1

Black Spot on OD Surface

Product operation video

Frequently Asked Questions

Q1:How can a roller inspection machine ensure that the cleaning process does not cause secondary contamination or leave residual water stains that affect the inspection?

A1：Applying oil evenly to the roller surface makes it easier to detect defects.

Q2:What is the expected lifespan of the equipment's key vision components (such as camera, lens, and light source)?

A2：More than 3 years

Q3:Is the testing software user-friendly? Can operators easily adjust parameters, view results, and export reports without any programming knowledge?

A3：Yes,The inspection software features a 2-tier parameter level system. For general operators, the parameters are straightforward and easy to configure, requiring only simple operations. For professional users, an administrator login is available to access and adjust more advanced parameters.

Q4:Do you provide on-site technical support during equipment installation and commissioning? Will you provide systematic training for our operators and maintenance personnel? What does the training include?

A4：Yes, we will provide an operating manual for the equipment, including maintenance precautions, and will provide written guidance as well as on-site guidance.
