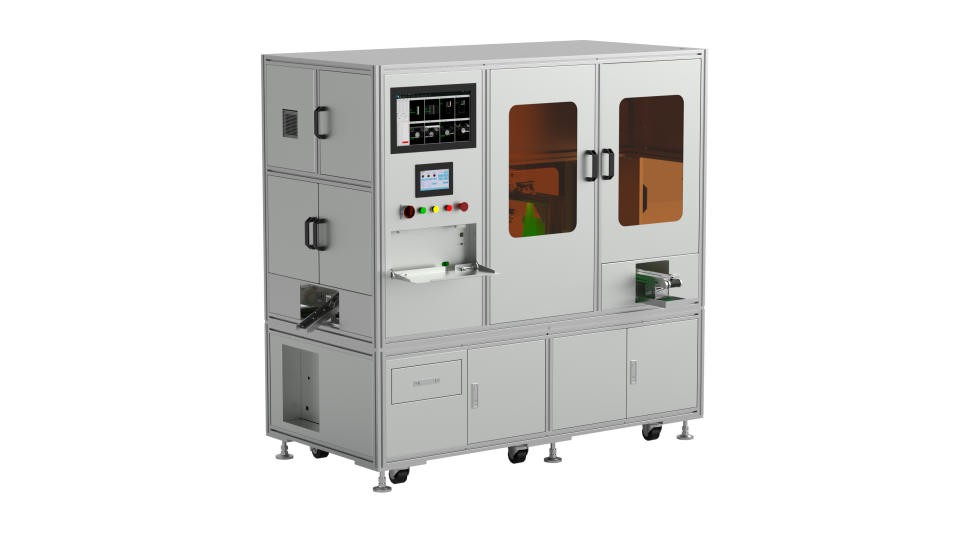

Model 0715 Bearing Roller Inspection

Model HZ-VI-CR0715
Fully Automatic Optical Inspection Machine, 360° full-range inspection of roller surface defects (chamfers, end faces, outer diameter surfaces, recesses). Compatible with cylindrical, conical, and self-aligning rollers (7-15mm). Speed: 12,000 units/hour, 7×24h stable operation.

Products parameter

Inspection Range & Speed

Workpiece: Φ7–15 mm (OD), ≤40 mm (length)

Stable speed: 220 pcs/min

Defect Recognition Items

Efficiently identifies: scrap, rust, black skin, pitting, dents, scratches, dent size, end face size, chamfer size, electric burn, spots, surface defects, cold heading defects, over-grinding, and excess material.

product-616-354

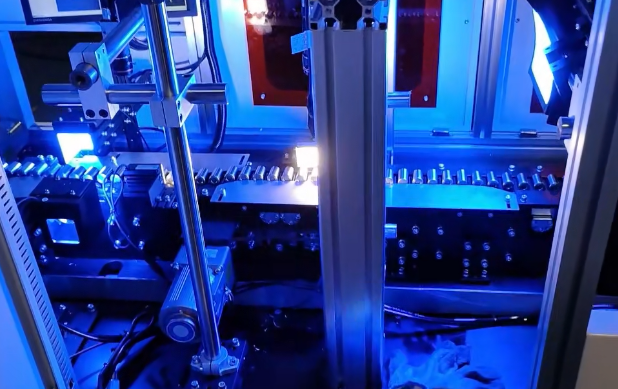

AI-Powered Automated Optical Inspection Solution

AI Detection: 8 cameras (2 line-scans), 160 pcs/min (0.01mm defects).

Anti-interference: AI distinguishes noise & vibration feeding.

Efficiency: Data traceability, 5% higher yield.

Detectable defects

Product operation video

Frequently Asked Questions

Q1:For different rollers, are the baffles of the equipment easy to adjust or replace? How long does it take to change models?

A1：Manual replacement takes only about ten minutes.

Q2:Does the equipment integrate automatic loading, unloading, and sorting mechanisms?

A2：Yes, we do not just provide a single piece of equipment; we offer customized solutions. We can supply a complete system integrating cleaning machines, inspection machines, and sorting mechanisms.

Q3:Is the device's detection algorithm based on traditional image processing or deep learning AI?

A3：Both. Deep learning requires more samples.

Q4:What can you buy from us?

A4：Our main products include 3D industrial cameras, bearing roller appearance inspection machines, depalletizing and palletizing robots, ceramic substrate AIO inspection, warpage detection, and sorting machines.
