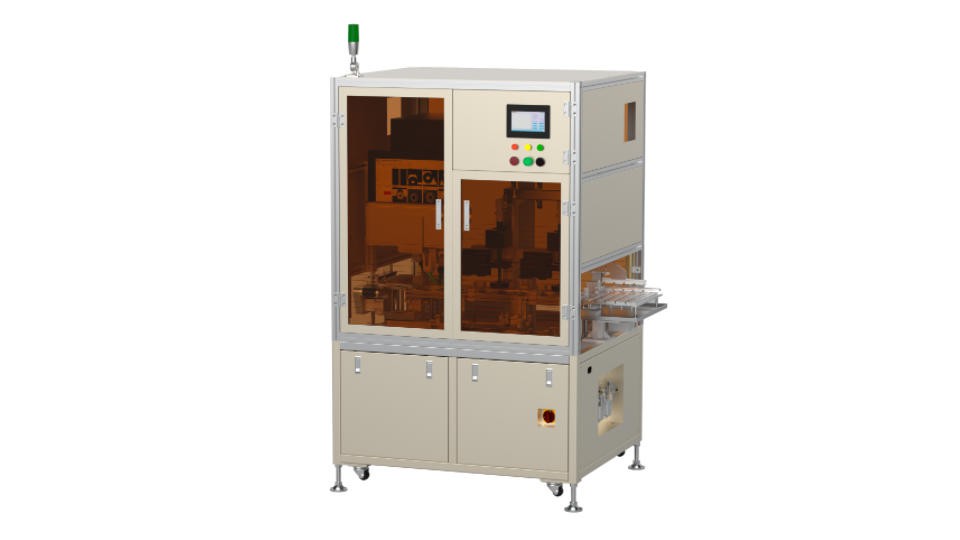

Model 0515 Bearing Inspection

Model HZ-VI-BB0515
—Integrating 2D/3D vision technology with self-developed industrial 3D cameras and inspection algorithms, achieving 360° all‑round detection of bearing surface defects (chamfers, end faces, outer diameter surfaces, covers, inner holes). Compatible with rubber seals, metal shields, and open‑type bearings, size range 15‑15mm, speed 2‑3.5s/pcs, 7x24h stable operation.

Products parameter

Inspectable Dimensions

OD: φ5–15 mm Thickness: ≤20 mm

Inspection Speed: 2-3.5 s/pcs

Inspection Items

2D Defects

Floating covers, bursting, curled edges, cover-ring gaps, inner/outer ring defects, chamfer issues (existence/size), rust, black skin, mixed covers, missing characters, surface cracks, scratches.

3D Defects

Dust cover surface dents (iron/plastic) (<0.03 mm accuracy), floating height.

5-15

Intelligent 3D Visual Inspection Solution

Flexible software platform: Highly configurable, adapts to multiple product types.

High-Precision 3D Vision

Captures micro‑deformation/dents in bearings, overcoming slow‑change detection limits.

Detectable defects

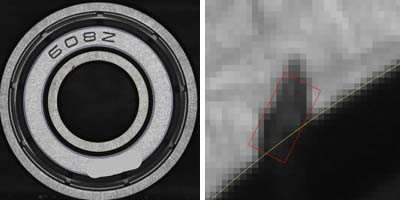

Irregular outer ring chamfer

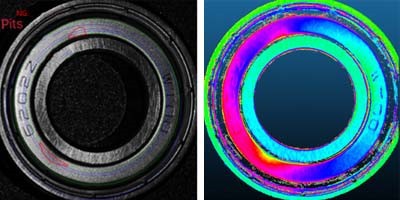

Pits

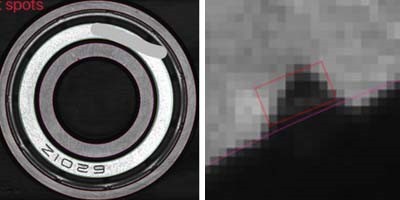

Black spots

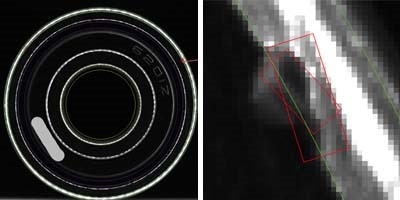

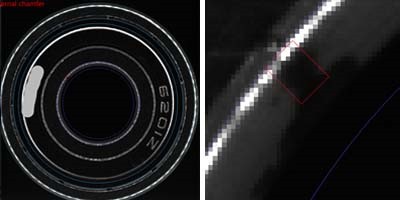

Abnormal internal chamfer

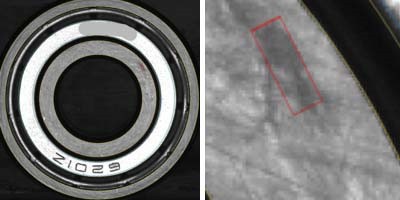

Black spots in the inner ring

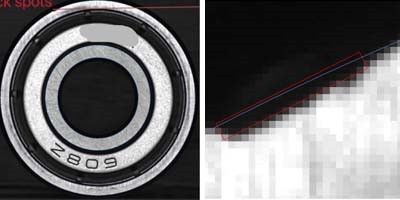

Black spots

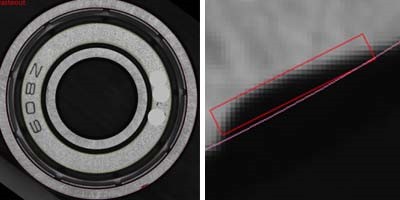

Outer ring wasteOut

Inner ring waste

Product operation video

Frequently Asked Questions

Q1:For different rollers, are the baffles of the equipment easy to adjust or replace? How long does it take to change models?

A1：Manual replacement takes only about ten minutes.

Q2:Can the equipment accurately distinguish between normal textures caused by machining processes (e.g., grinding marks) and actual defects that need to be removed (e.g., cracks and pits)?

A2：Under magnification, grinding marks are relatively shallow and show minimal differences in optical imaging. They can be distinguished by adjusting the angle and direction of the light source. Currently, the inspection machine takes multiple photos by rotating the rollers to separate real defects from marks. Additionally, it integrates deep learning capabilities for secondary verification to differentiate between scratches and actual defects.

Q3:How long does your delivery take?

A3：We provide customized solutions, and delivery typically takes about 50 days.

Q4:What is the expected lifespan of the equipment's key vision components (such as camera, lens, and light source)?

A4：More than 3 years.
