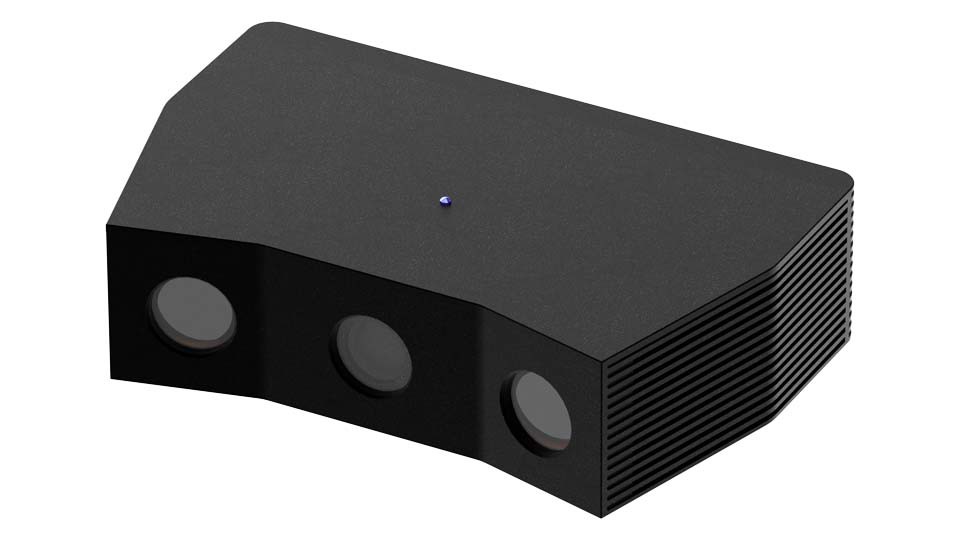

DM 3D Camera

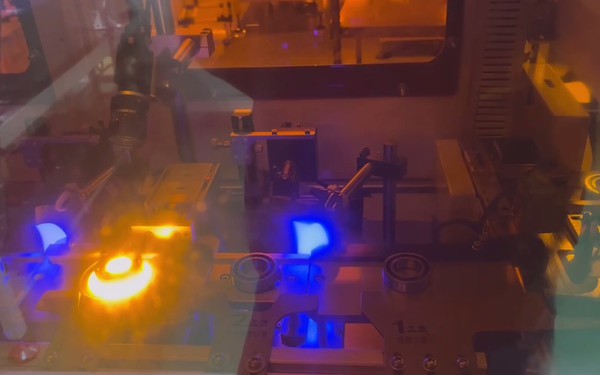

It is suitable for bearing inspection and ceramic substrate inspection, providing crucial three-dimensional data support and serving as a core technology component for achieving high-precision, automated quality control.

Products Features

High-brightness R/G/B/W structured light source with a precision better than 20μm

Multiple preset encoding methods, freely switchable

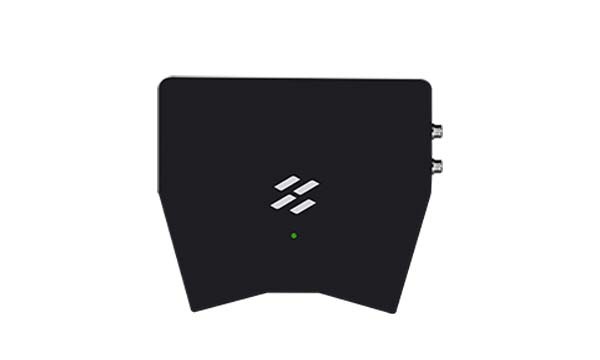

product-600-360

Supports 2D HDR and 3D HDR compositing

Based on embedded computing, all calculations are completed by the camera's own hardware

Technical parameters

Item	Details
Typical Applications	3D defect detection, flatness inspection, scratch & particle detection
Field of View	55×40mm - 120×80mm
Working Distance	100mm - 200mm
Scanning Rate	3FPS
Imaging Method	DLP structured light (multi-frequency phase shift, Gray code, line shift)
Resolution	2.3MP, 3MP, 5MP
Average Error	0.15%
Light Source Type	BLUE LED
Weight	2.6Kg
External Dimensions	175×202×65mm
Power Interface	M12 aviation, 36V DC 4.4A
Network Interface	M12X aviation, 2.5G
Secondary Development	Based on HTTP
Calculation Method	Embedded computing
Protection Class	IP65
Certifications	CE, FCC

Frequently Asked Questions

Q1:Does the camera have IP protection rating certification?

A1：Structured light IP65, TOF IP67

Q2:For specific needs, can you provide technical support services such as camera selection and lighting scheme design?

A2：Pre-sales support services are available.

Q3:What can you buy from us?

A3：Our main products include 3D industrial cameras, bearing roller appearance inspection machines, depalletizing and palletizing robots, ceramic substrate AIO inspection, warpage detection, and sorting machines.

Q4:How do you guarantee quality?

A4：We guarantee that the components used in our products are from top-tier brands, and our company has ISO certification.
