High-Speed Depalletizing Robot

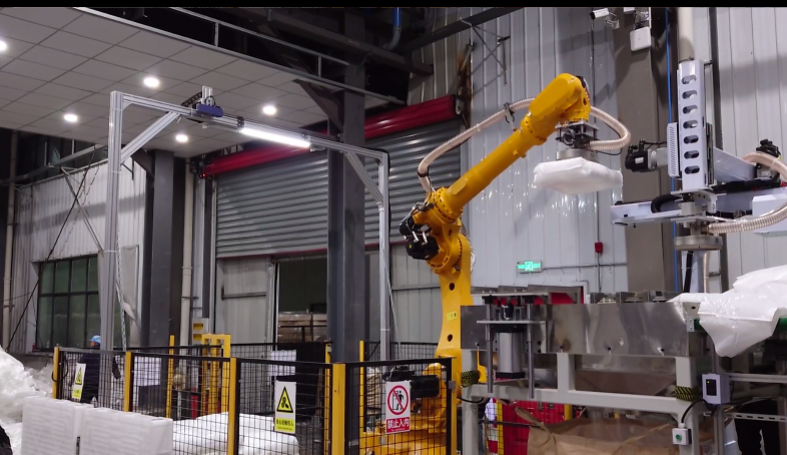

By adopting the coordinated operation mode of the robot body and gantry module, parallel processing of depalletizing and empty bag clearing is achieved. Through the highly overlapping motion cycles, idle time is effectively eliminated, resulting in a doubling of the overall operational speed.

Products Parameter

Feeding Efficiency

Up to ~8 tons/hour

Dual-Track Synchronization

Robotic depalletizing + gantry clearing

Eliminates gaps, doubles efficiency

Compact & Efficient

One machine replaces many

Space-Saving & High-Output

Maximizes productivity in limited spaces

Technical parameters

Material			Specification
Material			PP/PE/PVC/Sugar/Flour/Rice, etc.
Material Type			Granule/Powder
Bag Material			PE/Woven Bag/Kraft Paper Bag
Pack Weight			25kg/50kg
Pack Size (mm)			660/440/150
Pallet Size (mm)			1100/1300
Total Stack Height			2.1m
Function	Speed	4-axis: 240 bags/h	Robot	Column 4-axis / 6-axis
		6-axis: 320 bags/hour
	Residue Requirement	6g/Bag
	Loading/Unloading Stations	Single Station/Multi-Station
	Customer Receiving Mechanism	Mixer/Reactor/Feeding System	★ Remarks	Customized solutions are available.
	Dust Removal Requirement	According to Customer Requirements
	Empty Bag Handling	Waste Bag Bin

Product operation video

Frequently Asked Questions

product-548-326

Q1:What can you buy from us?

A1：Our main products include 3D industrial cameras, bearing roller appearance inspection machines, depalletizing and palletizing robots, ceramic substrate AIO inspection, warpage detection, and sorting machines.

Q2:How do you guarantee quality?

A2：We guarantee that the components used in our products are from top-tier brands, and our company has ISO certification.

Q3:Will there be any additional costs for major feature updates or version upgrades?

A3：No.It's free

Q4:If the system fails to identify, resulting in a grasping failure, can the system promptly issue an alarm and pause operation?

A4：Yes, the software will send an alarm signal.
