Yo! As a supplier of Ceramic Substrate 3D Warpage Measuring, I've seen firsthand how mechanical stress can mess with ceramic substrates. Let's dig into the effects of mechanical stress on the 3D warpage of these substrates.
Understanding Ceramic Substrates and Their Importance
Before we jump into the stress - warpage thing, let's quickly talk about ceramic substrates. Ceramic substrates are a big deal in the electronics industry. They're used in all sorts of high - performance electronic devices, like power modules, LEDs, and RF circuits. Why? Well, they've got great thermal conductivity, high electrical insulation, and good mechanical strength.
But despite these awesome properties, ceramic substrates aren't invincible. One of the major issues they face is warpage. Warpage can lead to a whole host of problems, such as poor electrical connections, reduced device reliability, and even device failure. And mechanical stress is one of the key factors that can cause this 3D warpage.
Types of Mechanical Stress
Mechanical stress can come in different forms. The most common ones are compressive stress, tensile stress, and shear stress.
Compressive stress is when the substrate is squished. It's like pressing a sponge between your hands. Think about a ceramic substrate being squeezed during the manufacturing process, like when it's being bonded to other components. This kind of stress can cause the substrate to bend inwards, leading to concave warpage.
Tensile stress is the opposite. It's when the substrate is pulled apart, similar to stretching a rubber band. For example, if the ceramic substrate expands and contracts at a different rate than the materials it's attached to due to temperature changes, it can experience tensile stress. This can result in convex warpage, where the substrate bulges outwards.
Shear stress occurs when two parts of the substrate slide past each other in opposite directions. This can happen when the substrate is subjected to uneven forces, like when it's mounted on a printed circuit board and there are vibrations or mechanical shocks. Shear stress can cause a more complex 3D warpage pattern, where different parts of the substrate may warp in different directions.
Effects of Mechanical Stress on 3D Warpage
Geometric Distortion
One of the most obvious effects of mechanical stress on ceramic substrates is geometric distortion. When the substrate is under stress, its original flat shape gets messed up. Under compressive stress, the center of the substrate may sink lower than the edges, creating a dish - like shape. With tensile stress, the edges may lift up, making the substrate look like a dome.
Shear stress can cause the substrate to skew, with one corner being pushed up and another pushed down. This geometric distortion is a big problem because it can make it difficult to align the substrate with other components during the assembly process. It can also affect the overall performance of the electronic device, as the misalignment can lead to signal interference and increased resistance.
Material Degradation
Mechanical stress can also lead to material degradation within the ceramic substrate. When the substrate is constantly under stress, micro - cracks can start to form. These micro - cracks are like tiny little faults in the material's structure. At first, they might not seem like a big deal, but over time, they can grow and spread.
In a ceramic substrate, once a micro - crack reaches a certain size, it can cause the substrate to break or shatter. This is especially a concern in high - stress environments, like in automotive or aerospace electronics, where the substrate may be exposed to vibrations, shocks, and temperature variations. Material degradation also affects the electrical and thermal properties of the substrate. As the micro - cracks form, the electrical insulation and thermal conductivity of the substrate can decrease, which can lead to overheating and electrical failures in the device.
Alteration of Electrical Properties
The 3D warpage caused by mechanical stress can significantly alter the electrical properties of the ceramic substrate. When the substrate warps, the distance between the conductive traces on the substrate can change. This can affect the capacitance and inductance of the circuit, leading to signal distortion and reduced electrical performance.
For example, if the warpage causes the conductive traces to get closer together, the capacitance between them will increase. This can lead to crosstalk between different parts of the circuit, where signals from one trace can interfere with others. On the other hand, if the traces get further apart, the inductance can increase, which can cause signal delays and loss.
Impact on Device Reliability
All of these effects - geometric distortion, material degradation, and alteration of electrical properties - ultimately have a huge impact on the reliability of the electronic device. A warped ceramic substrate can cause intermittent electrical connections, which can lead to random device failures. In some cases, the device may work fine for a while but then suddenly stop working due to the changing electrical properties caused by warpage.
This is a major problem for manufacturers, as it can lead to high warranty costs and damage to their reputation. In industries where reliability is critical, like medical electronics or military applications, even a single device failure can have serious consequences.
How Our Ceramic Substrate 3D Warpage Measuring Helps

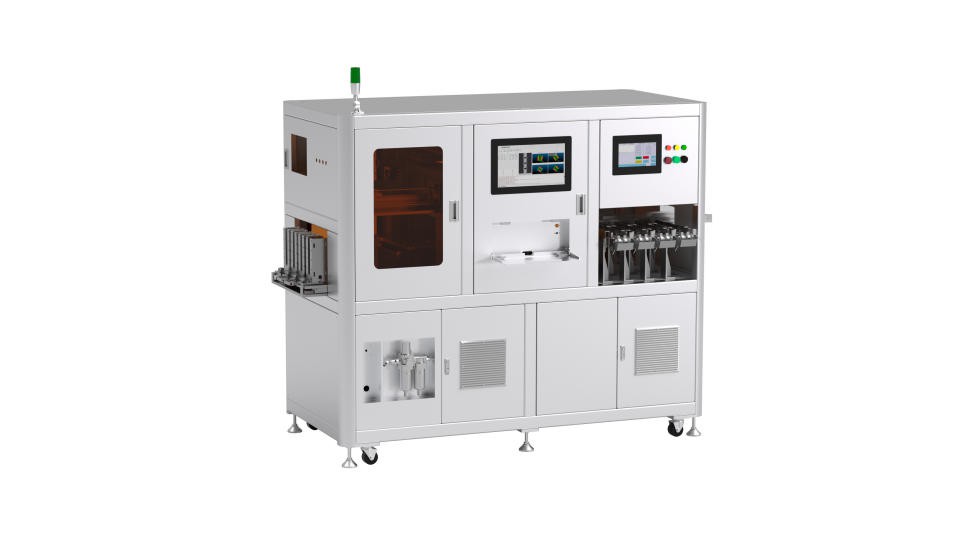

As a supplier of Ceramic Substrate 3D Warpage Measuring, we play a crucial role in addressing these issues. Our measuring equipment can accurately detect even the slightest amount of 3D warpage in ceramic substrates.
By using our measuring tools, manufacturers can catch warpage problems early in the production process. This allows them to take corrective actions, such as adjusting the manufacturing parameters or replacing the faulty substrates. Our equipment provides detailed 3D maps of the substrate's surface, showing exactly where the warpage is occurring and how severe it is.
This kind of detailed data is invaluable for manufacturers. It helps them to optimize their manufacturing processes, improve the quality of their products, and ultimately increase the reliability of the electronic devices they produce.
Conclusion
To sum it up, mechanical stress has a wide range of negative effects on the 3D warpage of ceramic substrates. From geometric distortion and material degradation to alteration of electrical properties and reduced device reliability, the problems caused by stress - induced warpage are significant.
But with our Ceramic Substrate 3D Warpage Measuring solutions, manufacturers can take control of the situation. If you're in the business of manufacturing electronic devices that use ceramic substrates, and you're worried about warpage issues, don't hesitate! Let's start a conversation about how our measuring equipment can enhance your production process and product quality. Reach out to us for a detailed discussion and to explore how we can work together to solve your ceramic substrate warpage problems.
